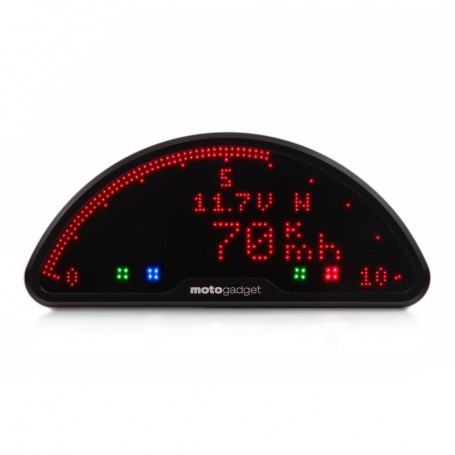

MOTOGADGET MOTOSCOPE PRO

Details The motoscope pro is the most recent generation of motogadget's digital dashboard series. Cutting edge technology enables us to create ultra-slim casing designs. 734 LEDs - governed by a 16-bit RISC processor - create an almost rimless, self-illuminating display matrix. It provides optimal readability even under conditions of direct sunlight. Automatic brightness control is a matter of course. The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary display are user configurable. Another display section shows the gear currently engaged. Four indicator lights are pre-installed and can be used for far more input signals via the Breakout Boxes. The motoscope pro is equipped with a fully-fledged CAN-bus interface and thus ready for many of tomorrow's developments like for example the plug 'n ride Breakout-Box Triumph (please see tab 'Triumph' above). The dashboard communicates over a proprietary digital one-wire bus (m-Bus) with additional Breakout Boxes to easily expand the application spectrum. This makes the dashboard highly versatile and makes application to a wide range of vehicles and tasks possible. The billet aluminium casing is cnc-machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE and does not have to be registered. Please order the Breakout Box to connect indicator light signals (see Breakout Box Std.) or to connect digital bus-systems (Triumph, H-D) additionally. For BMW R9T a Breakout Box is not necessary. Parts delivered Instrument with ca. 55 cm connector cable Speedometer sensor M5 x 0,5 fine-pitch thread (stainless steel, IP67) with ca. 150 cm connector cable 2 magnets 10 cable end connectors In-line fuse 2 stainless steel screws Detailed installation and operating instructions Please note: Touch sensor not included anymore.
